Powered PA for the big room.
DSP-tuned power for DJs, venues, and live events — with an LCD readout and dual combo inputs so every source sits right.
The LCD readout keeps your mode and levels in view, while a Class-D bi-amp with DSP tuning stays clean and controlled when you push it in a bigger room.
FULL SPECIFICATIONS
The complete, confirmed spec sheet for the S15 — nothing rounded up, nothing hidden.
| Speaker type | 2-way active powered PA speaker |
| Woofer | 15" · 60oz magnet · 3" voice coil · 4Ω |
| HF driver | 44mm compression driver |
| RMS power | 500W RMS |
| Amplifier | Class-D bi-amp with DSP |
| Frequency response | 40Hz – 20kHz |
| Maximum SPL | 118dB |
| DSP modes | Music / Vocal / Speech / Flat |
| Bluetooth | Bluetooth 5.0 |
| TWS pairing | Yes |

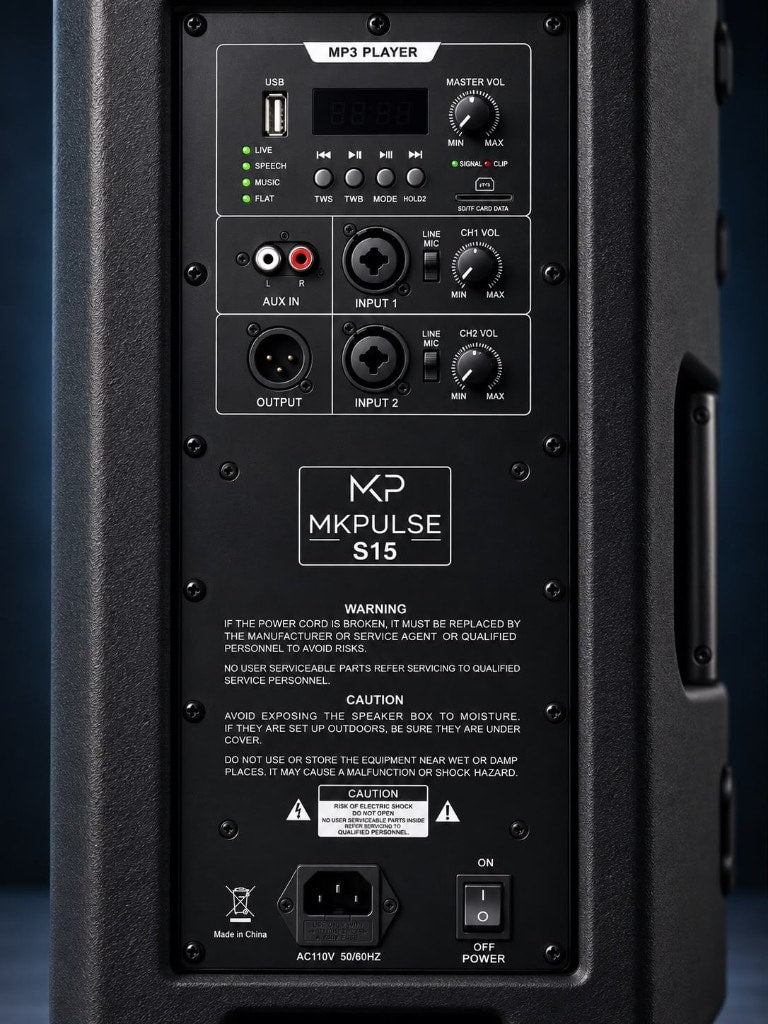

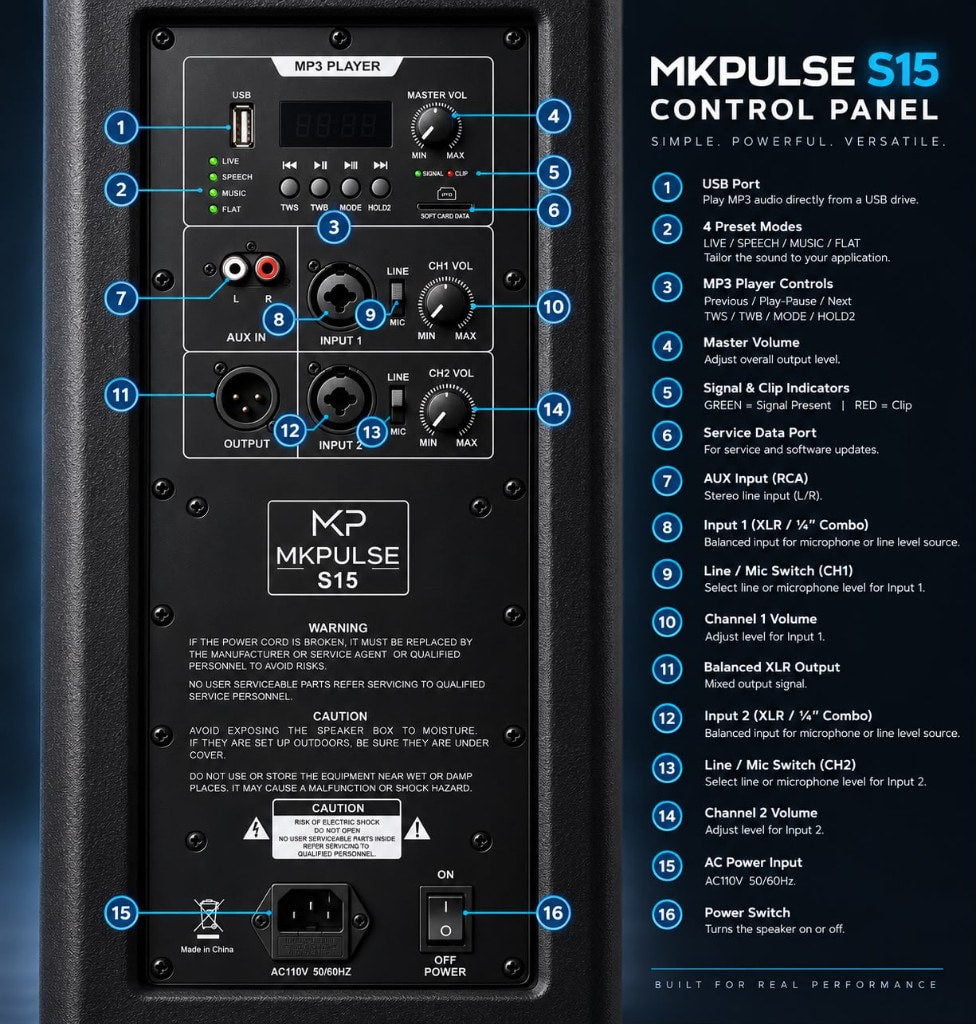

| Mic inputs | 2 × XLR / 6.35mm combo |
| Line output | Balanced XLR |
| Display | LCD control display |
| Cabinet | Polypropylene (PP) · 2 side handles |
| Power | AC 110V – 240V |
| Dimensions (carton) | 48 × 43 × 76 cm |
| Weight | 22.4 kg net · 25.3 kg carton |
| Colour | Matte black |
| Warranty | Limited warranty support |

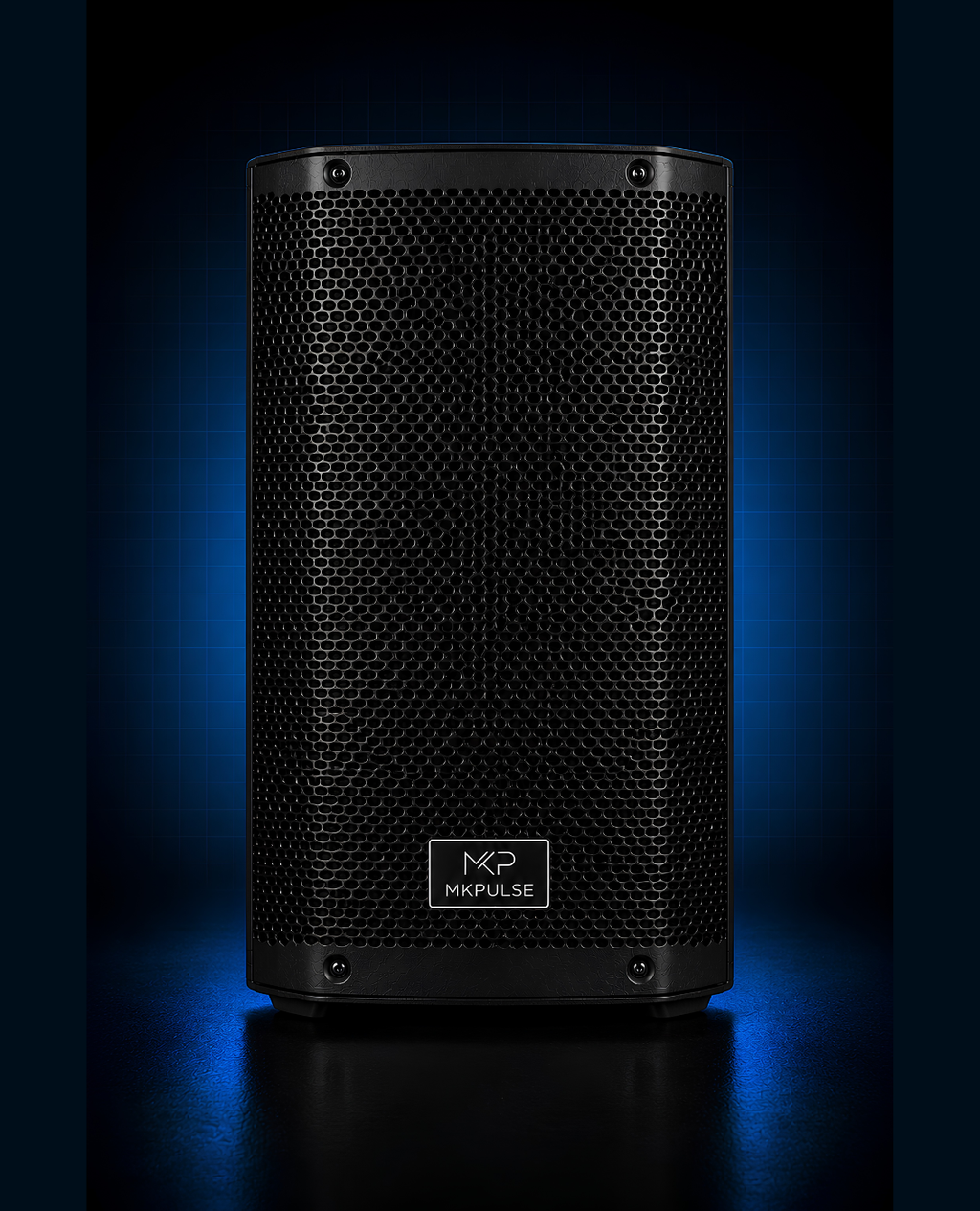

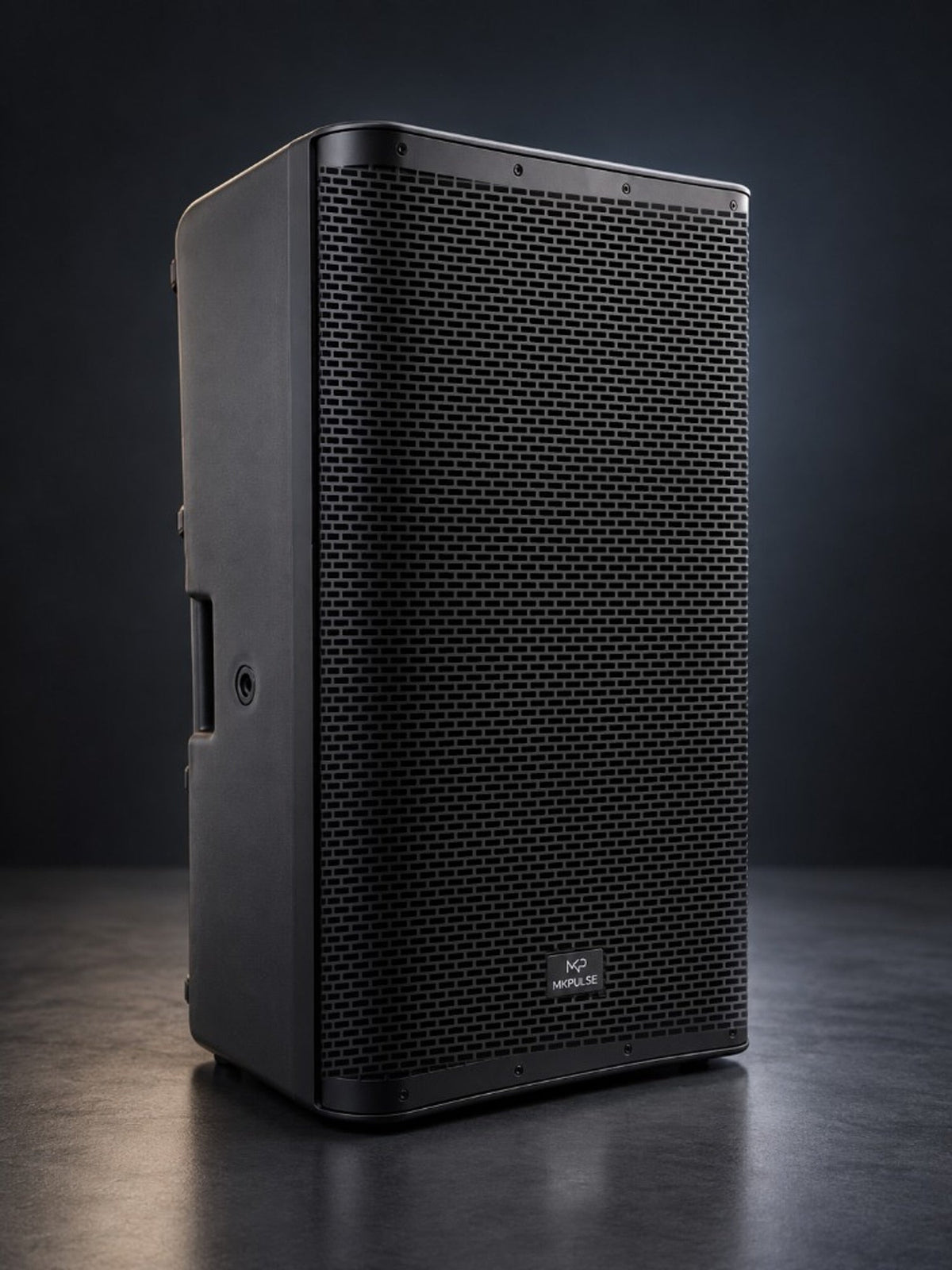

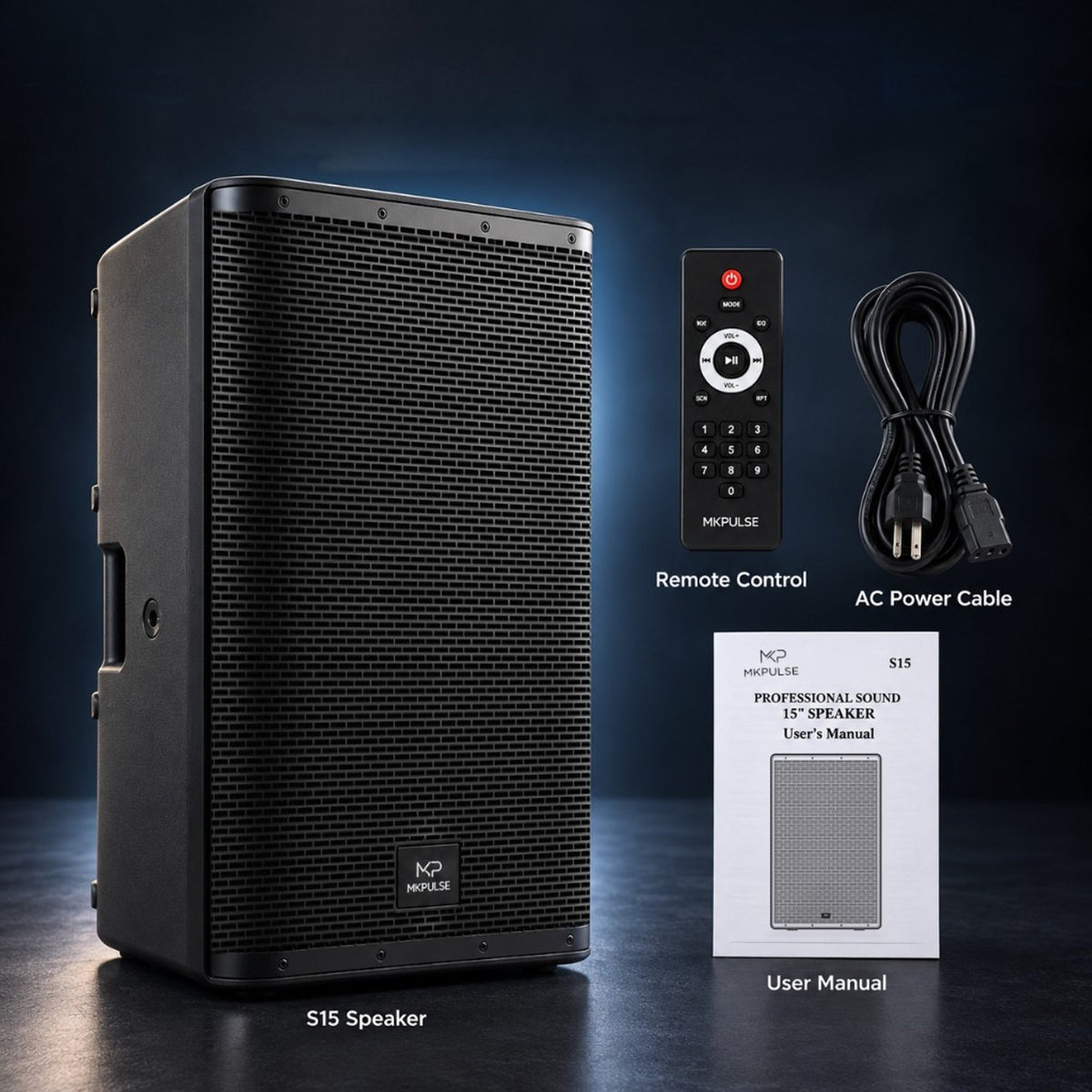

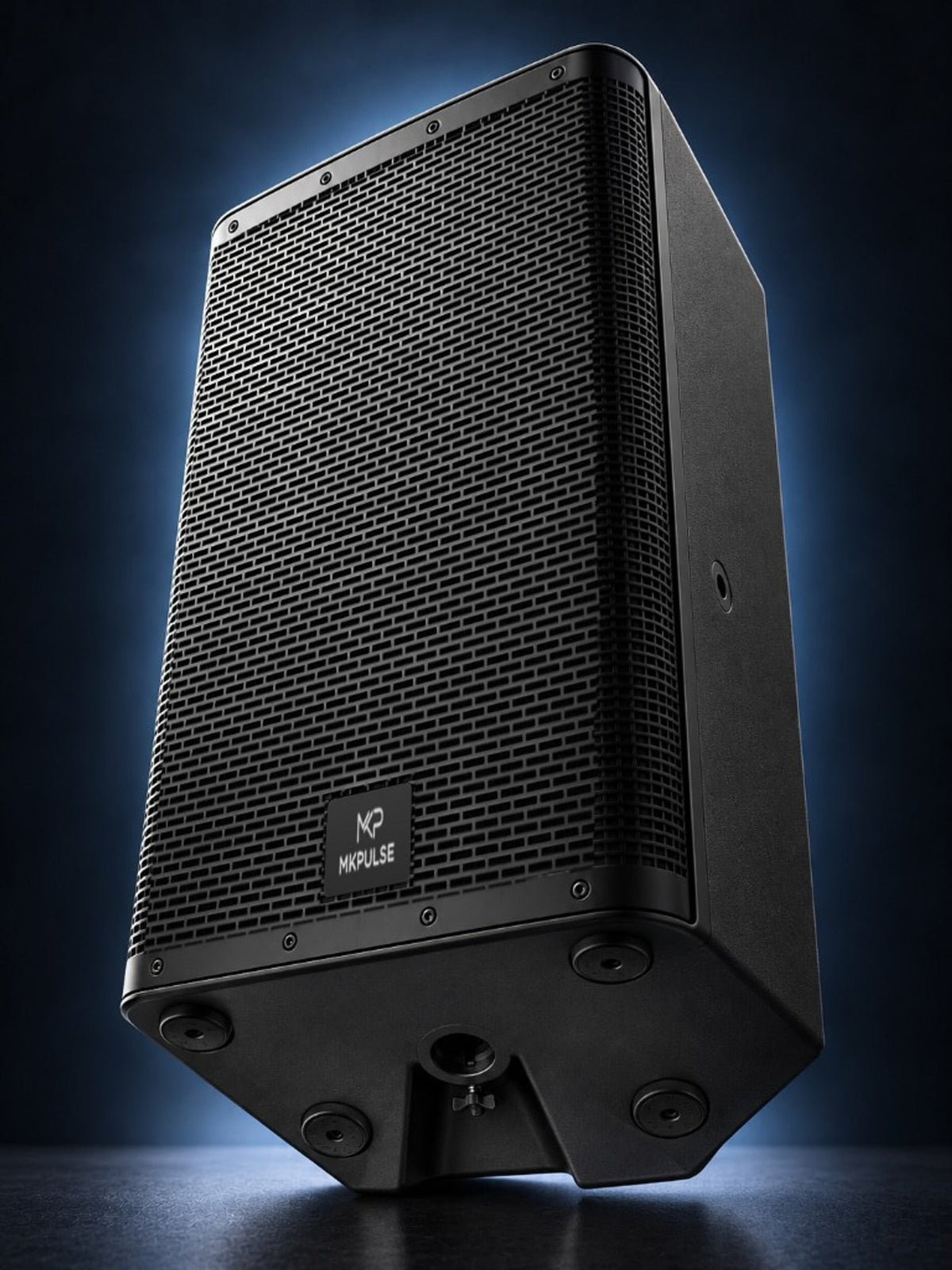

The 15" powered PA cabinet.
Mains power lead, included.
Setup and operation basics.
Full reference and support.
